Area detection

Improved area detection

You can now use area detection effectively even in conjunction with elements of complex geometry.

Island detection

Island detection also works with smart symbols.

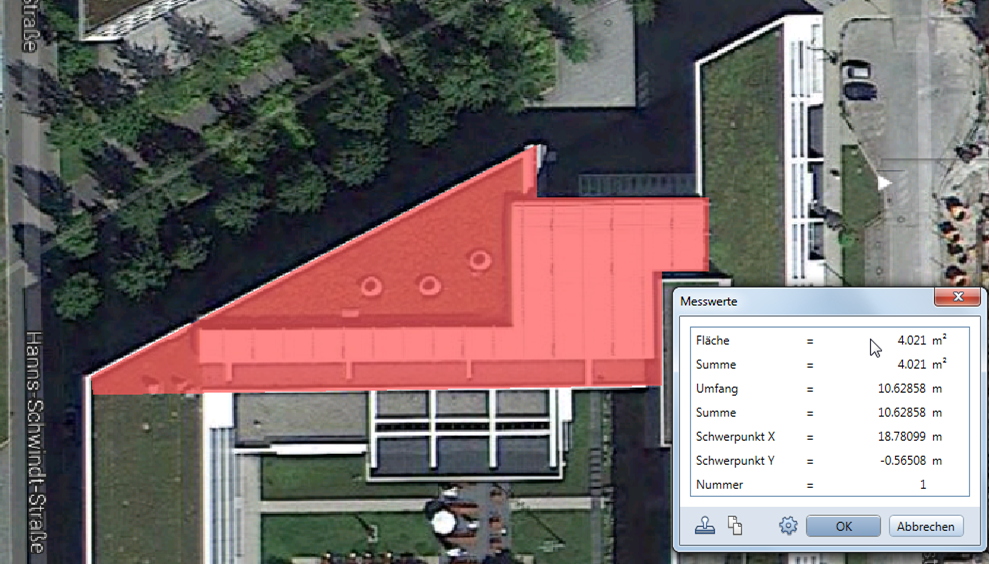

Measure

Measuring areas within bitmap areas is much easier now: the bitmap area is no longer detected and immediately measured in its entirety at the first click. You can now enter points within the bitmap area to define the outline you want to measure.
