Modeling door SmartParts with sectional doors

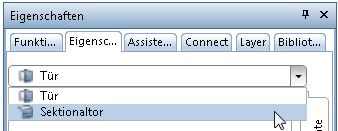

The Model Door SmartPart tool now provides a separate option for modeling sectional doors. Select the Sectional door option in the list box at the top of the Properties palette:

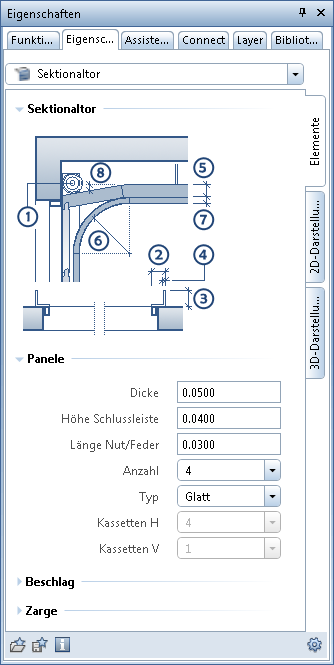

You can then define the required parameters using the tabs provided.

AR_SEC layer

You can use the new AR_SEC layer for sectional doors.
