Modeling window SmartParts with window sills

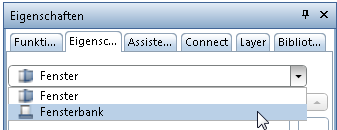

The Model Window SmartPart tool now provides a separate option for modeling window sills. Select the Sill option in the list box at the top of the Properties palette:

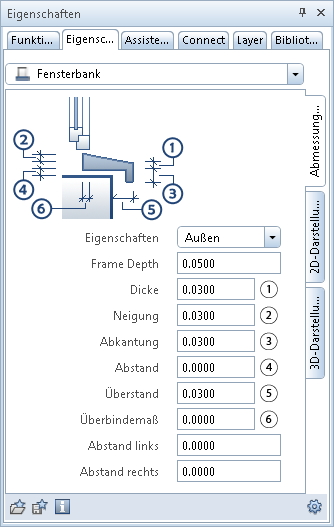

You can then define the required parameters using the tabs provided.
