Sample data for reinforcement SmartParts

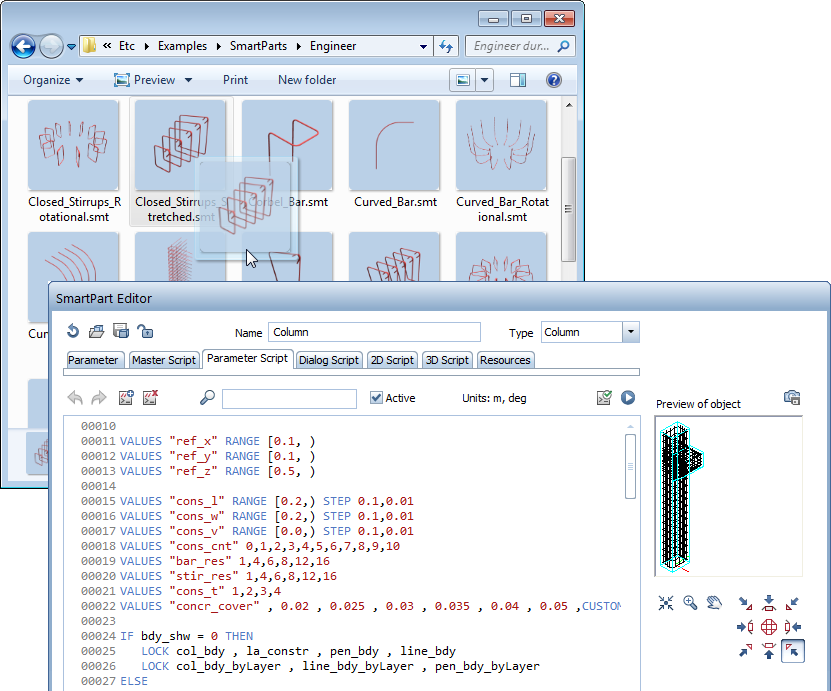

The ...\Etc\Examples\SmartParts\Engineer folder of Allplan 2014 includes a wide range of examples of individual bending shapes, linear placements, placements in rotation and placements in polygon. Simply drag the required element from the Explorer into the Allplan workspace and familiarize yourself with the manner in which SmartParts function. Open the element in the SmartPart Editor to see its structure and to find out how to create your own SmartParts.
