Angle, factor, offset

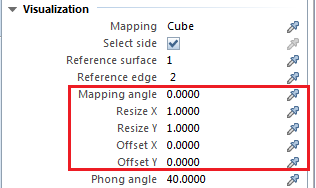

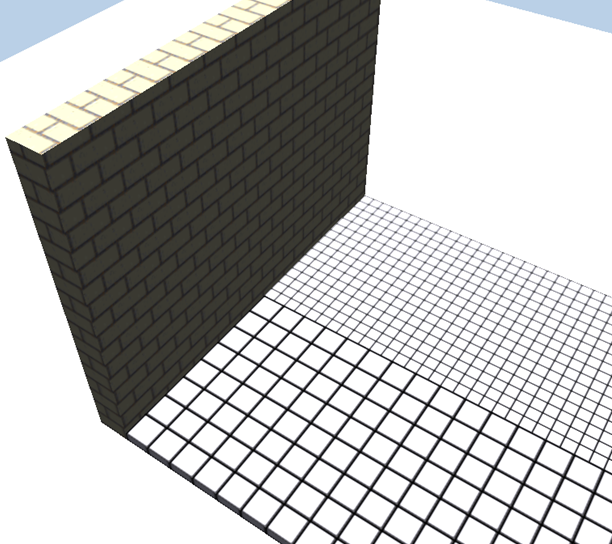

Using the Properties palette, you can rotate the texture, move it in the X and Y direction or resize it by a factor in the X and Y direction. You can do this for each element separately. It is not necessary to adjust or save the surface file or texture again.

Note: The mapping angle you define here is added to the angle of rotation specified for the texture in the surface definition.

Note: The resizing factor you define here applies in addition to the values entered in the Resize area in the surface definition.

Note: The offset you define here is added to the offset entered in the Move area in the surface definition.
