Style areas in component direction

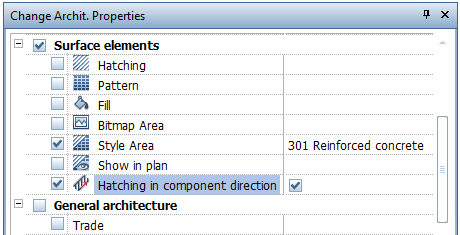

The Change Archit. Properties tool has provided the Hatching in component direction option since Allplan 2013-1. When you select this option, the hatching adapts to the direction of the linear component.

In Allplan 2014 you can now apply this option not only to hatching but also to patterns and hatching that were defined using Style Area. Consequently, this option has an effect on further elements, such as facing, and on all subsequent applications, such as architectural sections, associative views and hidden line images.
