Associative visualization of surfaces

You can now Visualize Surface Elements in an associative manner.

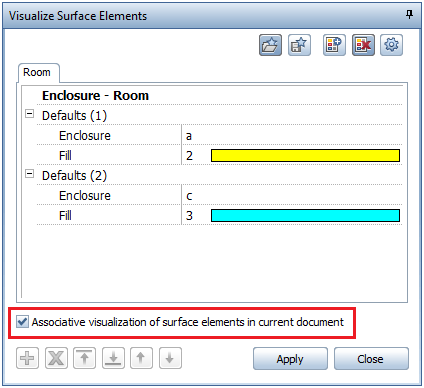

When the Associative visualization of surface elements in current document option is selected, all elements that meet a criterion of surface visualization are automatically selected. When you create new elements that meet a criterion, they are automatically given the surface element defined and the legend updates accordingly.

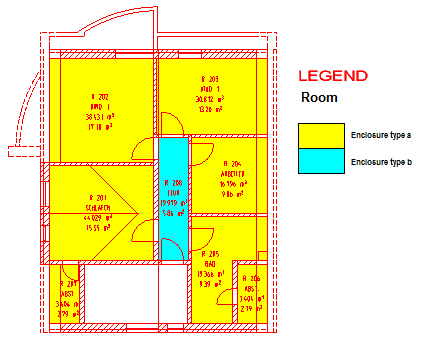

Example of surface visualization of rooms with enclosure type:

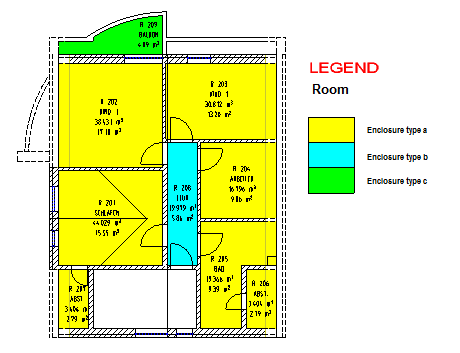

When you add the balcony, it is filled automatically and the legend updates accordingly.
